Q-Eye Radar MT

Pulse-Wave FFT Technology



In some applications it is an advantage to have a non-contact measurement. When combining both Radar and Water level transmitter, they provide a revolutionary approach to open channel and sewer flow monitoring. Combined are pulse wave radar velocity sensing technology with ultrasonic pulse echo level sensing to measure open channel flows.





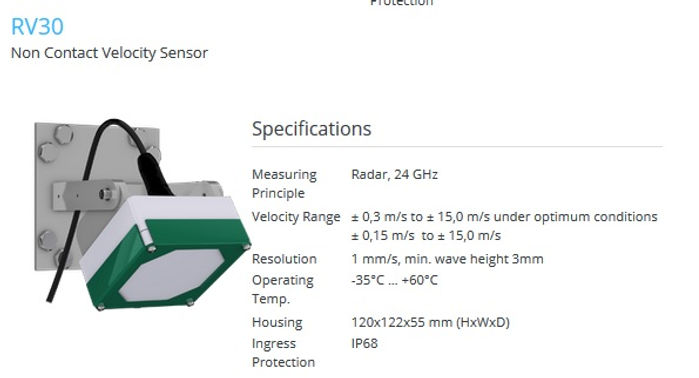

Specifications



Sensor                   1 x velocity

                             1 x water level (optional)

Frequency             24 GHz

V-Sensor              (bi-directional)

Resolution            1 mm/s; min. wave height 3mm

Accuracy                < 2,5 % of the reading ( under normal flow conditions )

Display                  4 lines, 20 characters

Keyboard               4 keys

Datalogger            16 GB Micro SD card

Communication     RS485, MODBUS (RS232 or RS485), WLAN, GPRS, Ethernet, 10/100 Mbps

Inputs                   max. 4 x 4-20 mA, 2 x digital

Outputs                 max. 4 x 4-20 mA 4 x Relay, 2 x Pulse

Power Supply        85-260 VAC (48/60 Hz) or 9-36 VDC

Approval                ATEX (option)

Enclosure               ABS, wall mounted
