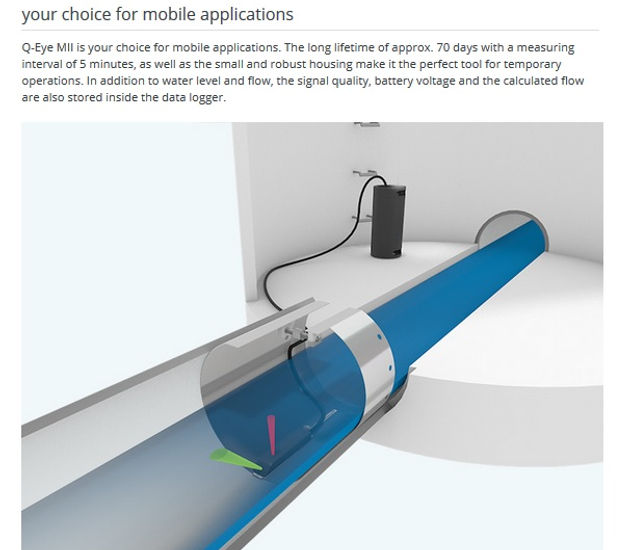

Q-Eye M II

portable Pulse-Doppler system





For sewage treatment plants flow measurements are primarily installed for internal reasons, for example to control specific plant components with flow dependency or for controlling additives. International regulations for example the EU-Directive for handling municipal waste water require a continuous surveillance of waste water flow. Defective flow measurements on sewage-treatment plants can therefore influence their operation, but there can also be legal or environmental consequences.





Specifications



Sensor                     1 x velocity

                               1 x water level

 Frequency               1 MHz

 Range                     velocity ± 5,3 m/s
                               water level 0,04 – 1,3 m
                               expandable via optional
                               hydrostatic sensor: 0 – 3,5 m
                               (other ranges available upon request)

 Accuracy                 ± 1% of measured value
                               for v and h (ultrasonic)
                               ± 0,25 % for value h (hydrostatic)
                               ± 2% for flow

 Cable Length          max. 80 m

 Display                   1 line, 8 characters

 Keyboard                1 key

 Datalogger             2 MB (internal)

 Communication      RS-232

 Outputs                  1 x Pulse

 Power Supply         battery operation 8 x 1,5 V (D-size)
                               or rechargeable battery

 Approval                 ATEX (option)

 Enclosure               IP 69 K (NEMA 6P) if plugs are connected
                              to sensors or protection caps screwed on tight.

 Enclosure               POM (Polyoxymethylen)
