Ductus TT

Ultrasonic multipath flowmeter

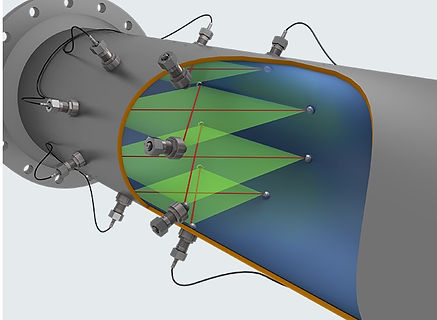

For pipes with a diameter of more than half a meter, acoustic flow measurement systems have long established themselves as a reliable and convenient measurement method. Measurements in several
planes are a recommended method to determine the efficiency of the turbine without the need for calibration meeting the latest international standards. Fixed installed equipment form the basis for verifying the efficiency. A deterioration of efficiency can be detected right away and therefore corrections can be initiated at an early stage.

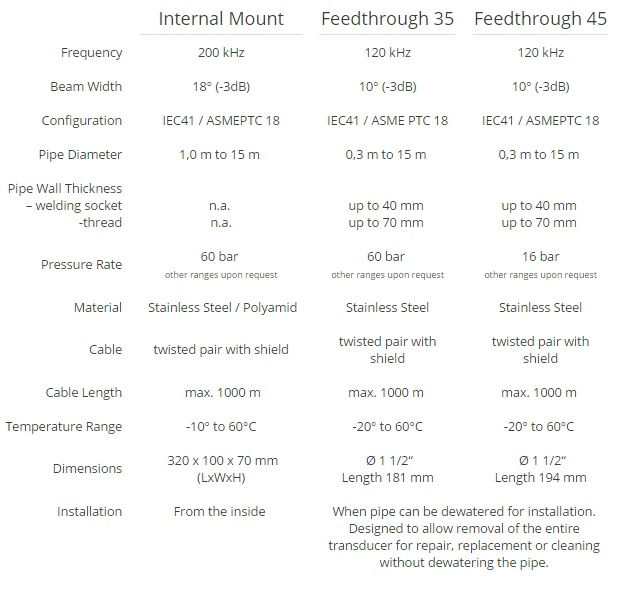

Specifications

 Acoustic Paths                   1 – 8

 Range                         ± 0,5% with 8 paths

 Display                        4 lines, 20 characters

 Datalogger                   internal, sampling interval user selectable

 Communication            RS-232, MODBUS, Ethernet, USB

 Inputs                         max. 8 x 4-20 mA

 Outputs                       max. 4 x 4-20 mA

                                   2 x Relay, 2 x Pulse

 Power Supply               85-264 VAC (50-60 Hz) or 12 VDC

 Battery Backup             integrated, 2 Ah

 Enclosure                     Steel, wall mounted

 Dimensions                  400 x 500 x 160 mm (WxHxD)
